how to make a minimal deterministic finite atomation  from regular expression

how to make a minimal deterministic finite atomation  from regular expression.

eg (0+1)*(10) dfa of this?????

9Comments
karmjit joshi @karmjitjoshi
7 Feb 2017 04:01 pm

yr koi rply kr deo. m try to understand TOC grammar many time but its ........



Sumit Verma @sumitkgp
7 Feb 2017 04:58 pm

@karmjitjoshi R.E is (0+1)*(10)
It is saying that DFA must end with 10.
Always try to derive some strings with the help of regular expression given.
Here some of the strings are as : {10, 010, 110, 010, 0110, 1010,1110,.....}

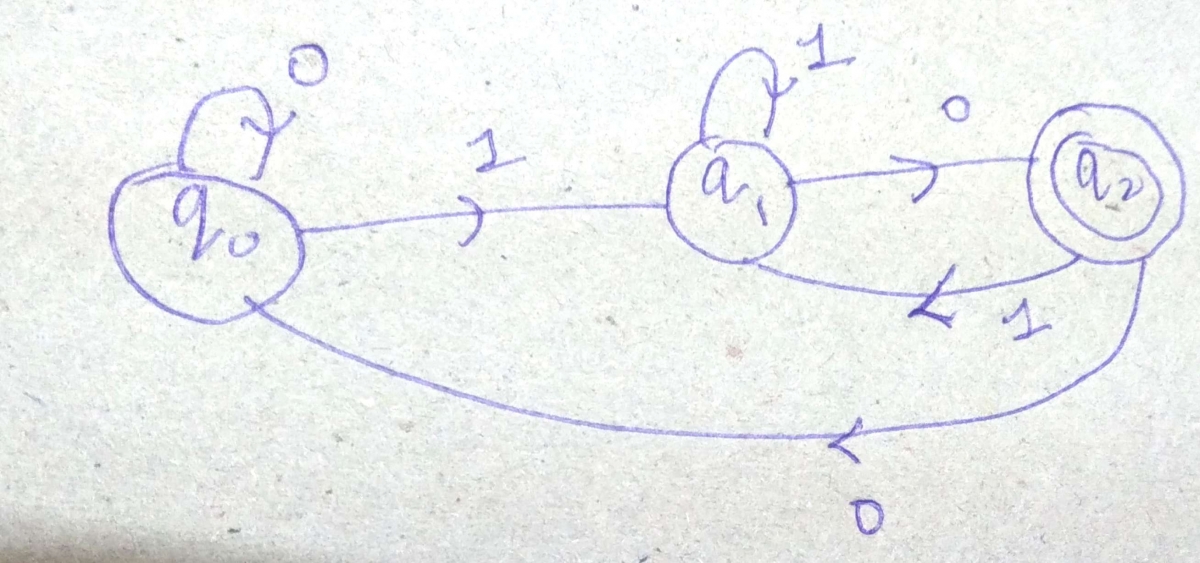

Now try to draw DFA,

Plz let me know if you have any doubt.


karmjit joshi @karmjitjoshi
7 Feb 2017 05:14 pm

how to identify what the expressionmeans? like in above examples expression mean it end with 10.how to understand expression ?

 (0+1)*0011(0+1)*+(0+1)*1100(0+1)* what this will be?/

nd thx sumitverma sir

Sumit Verma @sumitkgp
7 Feb 2017 05:36 pm

 (0+1)*0011(0+1)*+(0+1)*1100(0+1)* means string will contain either 0011 or 1100.

karmjit joshi @karmjitjoshi
7 Feb 2017 05:39 pm

it mean which is not in () that contained by string?

Sumit Verma @sumitkgp
7 Feb 2017 05:53 pm

Please do not take it wrong.
See, (0+1)*0011(0+1)*+(0+1)*1100(0+1)* has two cases, I am taking first one.
(0+1)*0011(0+1)* says that string can start will any symbol 0,1(Any combination of 0,1) as well as string can end with any symbol 0,1 (Any combination of 0,1) but in between, there must be a sequence as 0011.
Example; {0011, 000110, 00001100111111,....}

karmjit joshi @karmjitjoshi
7 Feb 2017 06:04 pm

(0+1)*(00(0+1)*11 mean start with any combination then 00 again any combination nd end with 11. like(11001111, 00001011.....)  m right sir?

Sumit Verma @sumitkgp
7 Feb 2017 06:07 pm

@karmjitjoshi Taking this as (0+1)*00(0+1)*11, yes you are right.

karmjit joshi @karmjitjoshi
7 Feb 2017 06:09 pm

thnku sir now m understand. thanku very much
